Product Feature Product Comparison Core Technology Whole Structure IOT Technology Application Scenarios Product Recommendation

Product Feature

Energy saving 40%

Permanent magnet synchronous high-speed motor + high-efficiency three-dimensional flow impeller
saving 40% energy compared with traditional fans (vortex, roots, etc.)

Easy to assemble and disassemble

Special structure design is adopted, the disassembly and assembly of the whole machine only takes 30 minutes, and the installation is convenient
No mechanical maintenance is required for normal operation

Stable and reliable

The air volume generated by the centrifugal impeller is continuous and stable, and there is no pressure attenuation during long-term operation
It can be started and stopped frequently, with a wide range of working
conditions and an adjustable speed range of 5% -110%
Annual inspection and lifetime warranty

Mobile APP remote control

PLC + remote data monitoring
Remote debugging and adjustment of equipment operating conditions

Low noise and oil free

Low vibration, noise < 70dba
Oil free design in air compression process to discharge oil-free clean air

Product Comparison

product

Energy saving situation

noise

Installation convenience

Flow control

Intelligent operation

Monitoring mode

Fault handling

Oxygen mass

Service life

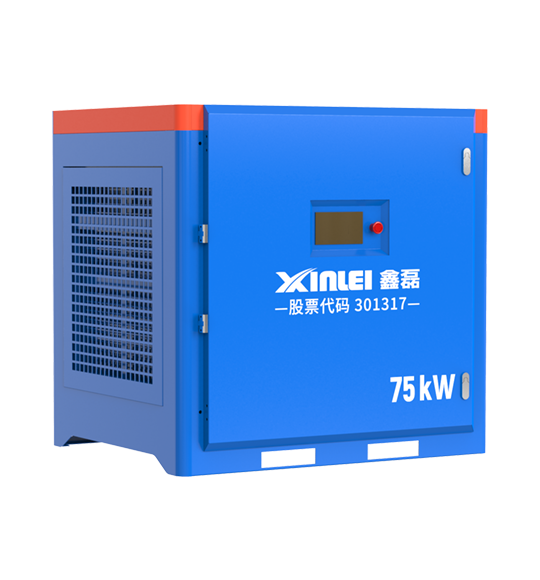

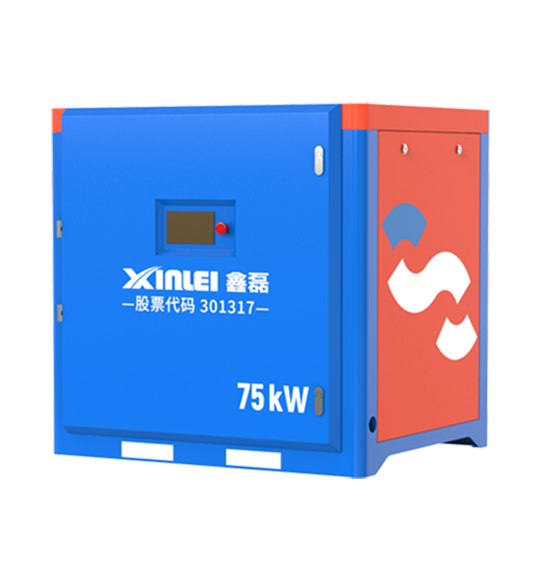

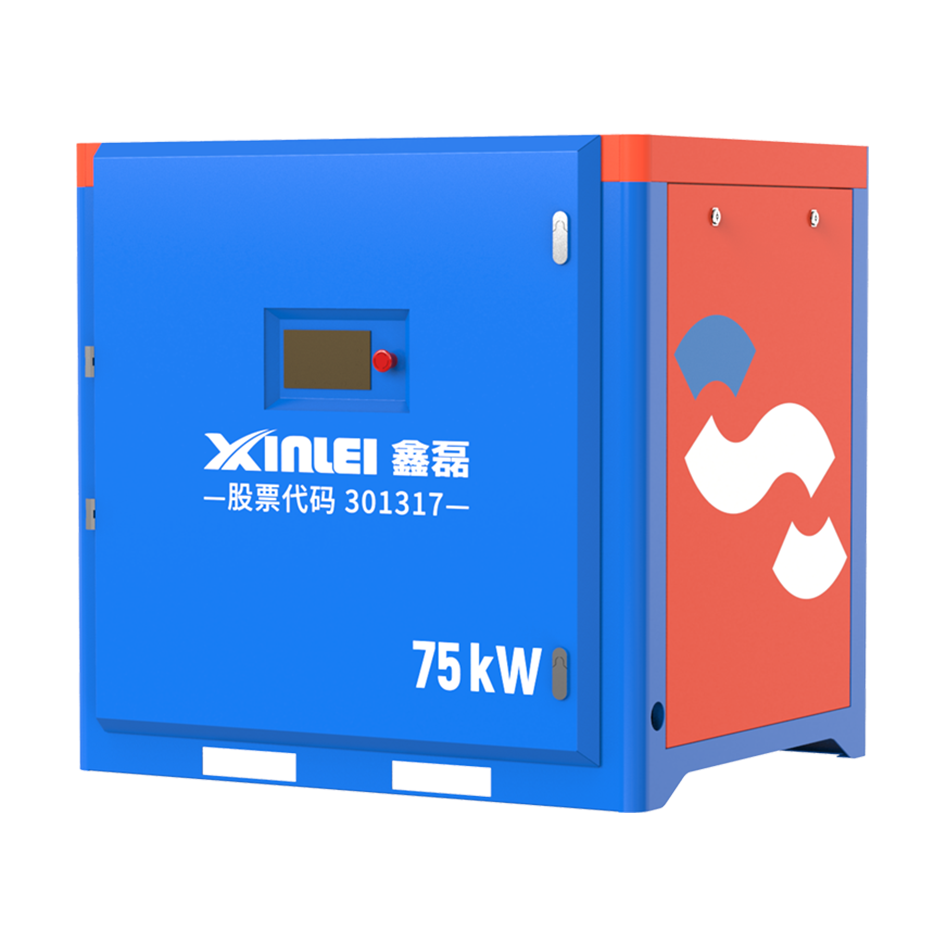

XINLEI high speed aerator

40% energy saving

Low noise, below 70dB

The aerator is highly integrated and easy to install

Microcomputer precise control to achieve stepless speed regulation

Smart control panel for easy operation

Online monitoring by mobile phone remote control

Automatically alarm and record the cause of failure in time

Complete filtration system to provide clean air

Corrosion resistance and longer service life

Roots blower

Traditional technology and high power consumption

Loud noise is harmful to the health of shrimp farmers

Risk of electric leakage without body cover

It is difficult to control without microcomputer intelligent oxygen supply

Complicated operation and easy failure

Need to go to the site frequently to confirm the oxygen supply

It will just stop if there is error and cannot record the reason

There are many impurities in oxygen supply, which is easy to cause pollution

The equipment is easy to corrode, the cleaning and maintenance cost is high

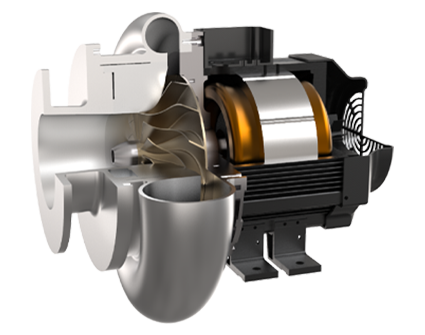

Core Technology

Three-way flow impeller

High-order modal calculation obtains the optimal solution for the full arc of the impeller, avoiding turbulence and reducing over-speed blocking; precision manufacturing of aviation aluminum material with strong corrosion resistance; precision manufacturing by 5-axis machining center, the tolerance is kept below 5/1000 mm; impeller Directly connected to the shaft, the power transmission efficiency can reach 100%.

High-speed permanent magnet motor

Adopt high efficiency permanent magnet synchronous motor (PMSM), efficiency ≥96%; Aerodynamic engineering technology,

The speed can reach more than 20,000 rpm; the insulation grade is H (maximum temperature resistance 180°C).

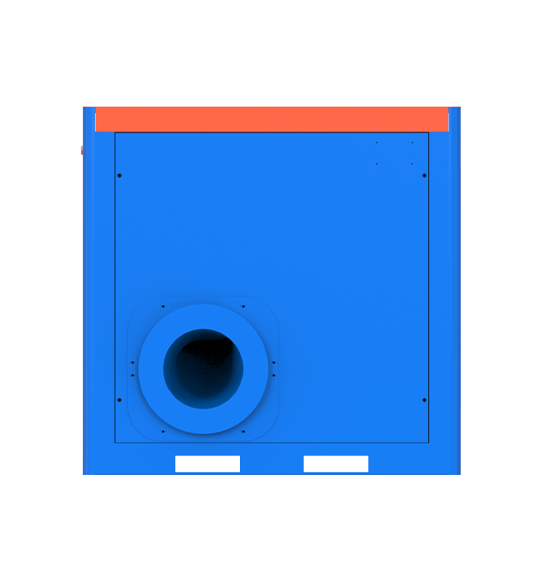

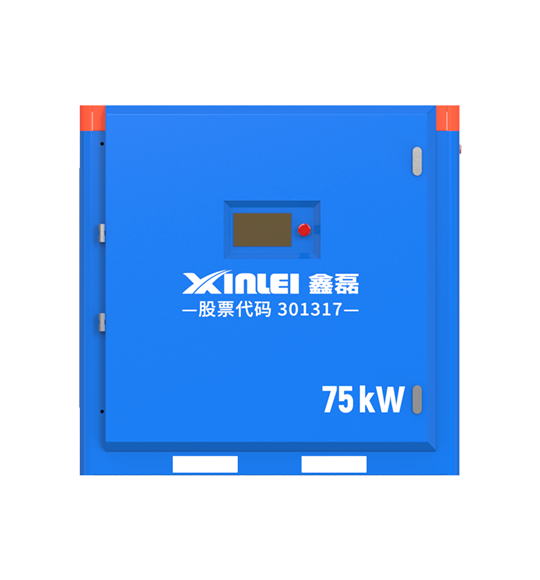

Whole Structure

PLC electronic control system

-Real-time monitoring system operation data and trajectory, multiple protection early warning functions;

- IOT database management, setting up a background service platform, and modular management of equipment energy efficiency.

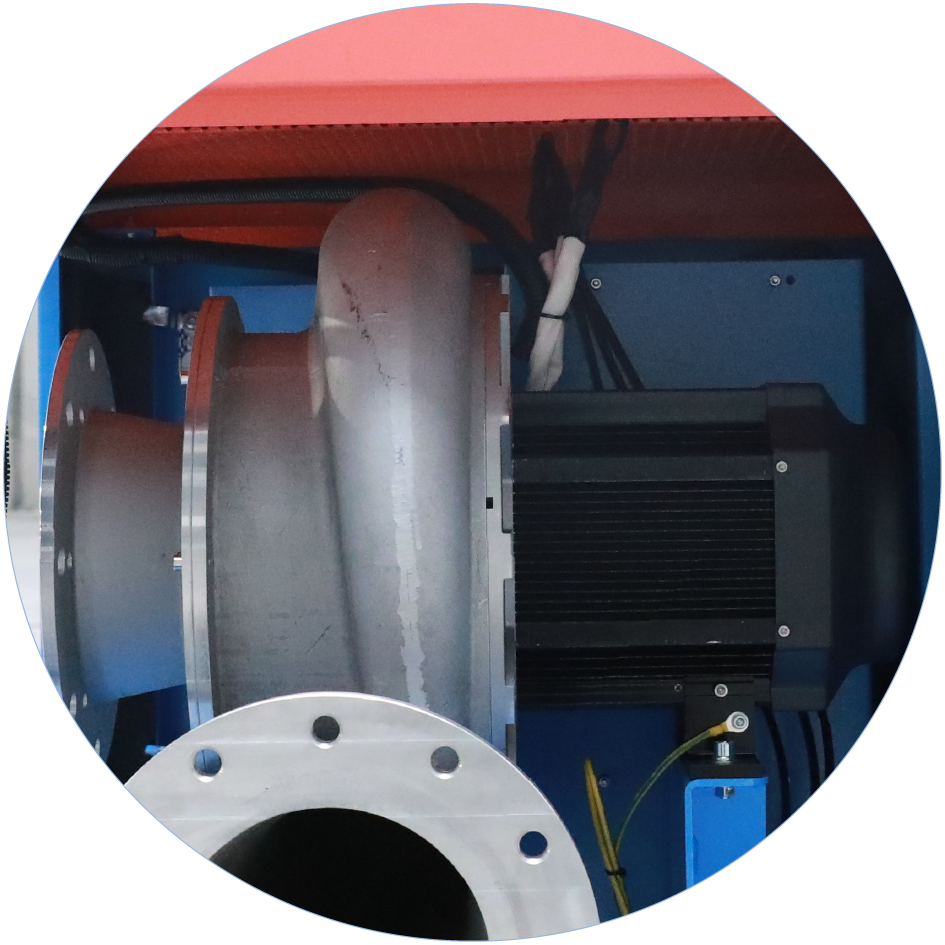

Permanent magnet high speed motor

-Optimized design of permanent magnet synchronous motor to rotate at high speed;

-Precise speed control via inverter.

High efficiency inverter

-High stability and reliability;

-High-speed rotation function that saves energy by adjusting the frequency;

-Built-in DC reactor, which can suppress power harmonics, precision operation, soft start;

-Adjust the fan air flow through the inverter, the adjustable range is 45% to 110%;

Intelligent Control Panel

-Maintain a certain pressure, flow and speed through the PLC control system, which is easy to control.

-Using mobile phone APP to realize remote control;

-With anti-surge (SURGE) protection function, improve product safety, provide a variety of working modes;

-Automatic fault alarm, easy to analyze the cause of the fault.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
